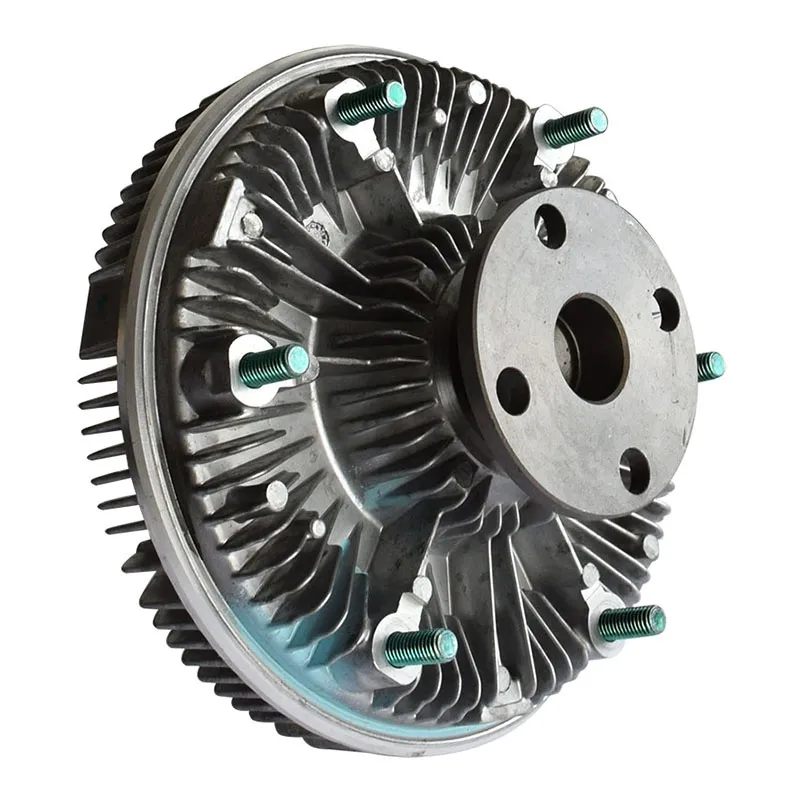

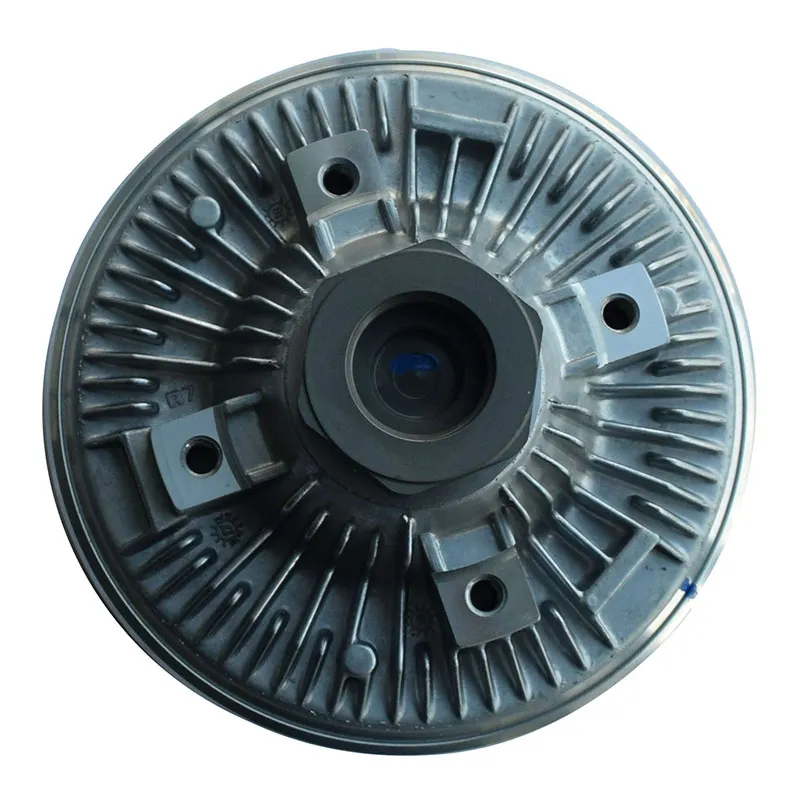

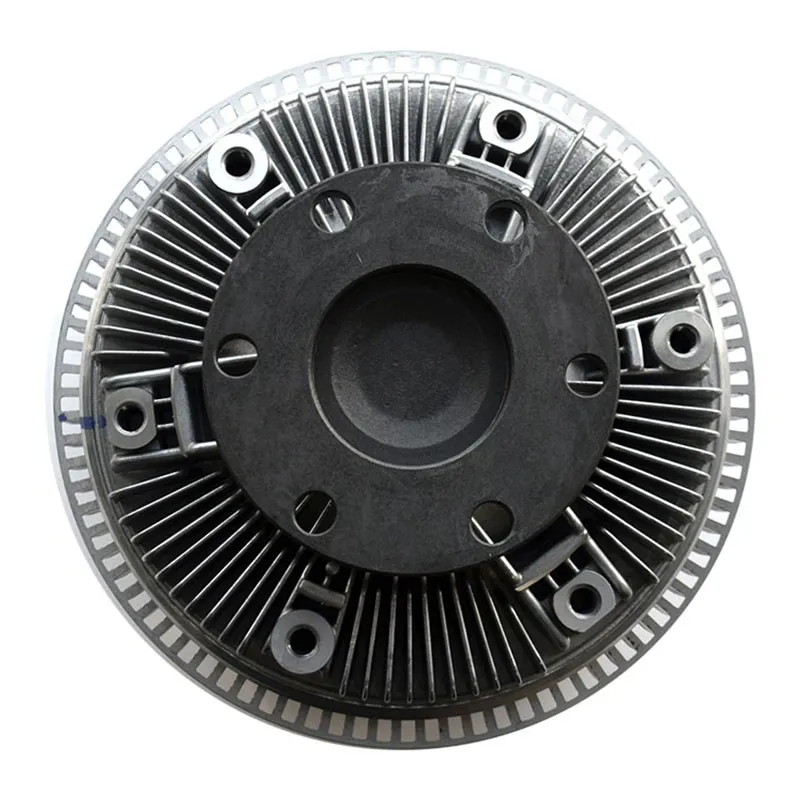

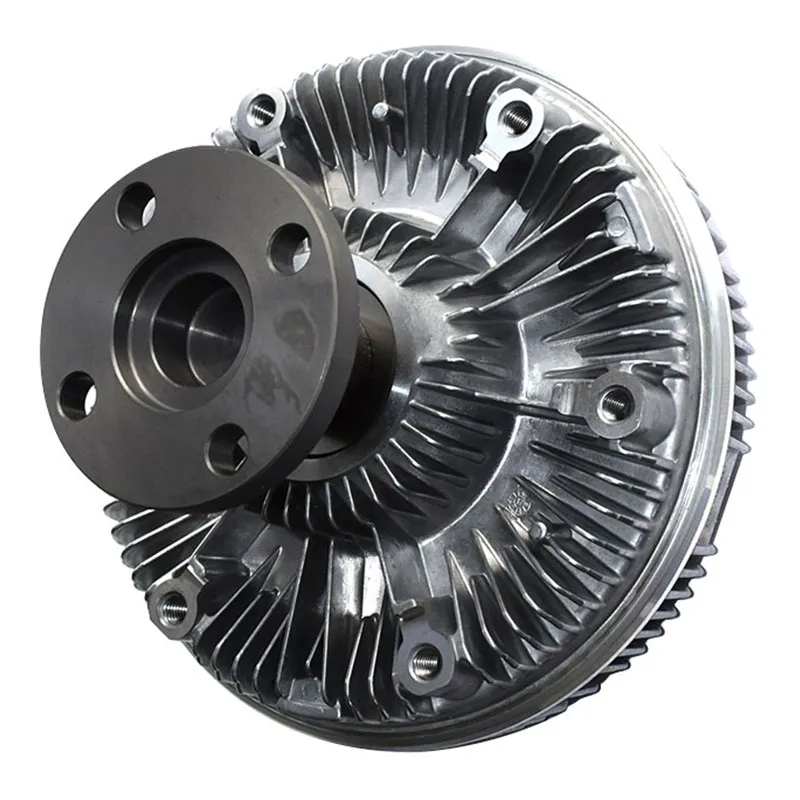

Viscous Fan Clutch for John Deere 7610/7710/7810 Series Tractors

Description

If your cooling fan sounds like a jet engine all the time or barely spins when the engine gets hot, you know your viscous fan clutch has called it quits. This temperature-controlled clutch is what makes your cooling system work smart—spinning fast when you need maximum cooling power and freewheeling when you don’t. A properly working clutch saves you 10-15 horsepower that can go to pulling implements instead of just pushing air around.

What You’re Getting

• Temperature-sensitive design engages the fan exactly when cooling is needed
• Saves horsepower for field work when fan isn’t required—that’s power to the ground
• Quieter cab operation during road transport and light work
• Sealed construction requires zero maintenance throughout its service life
• Precision-balanced assembly eliminates vibration that wears out belts early

Built for Real Farm Work

These John Deere 7010 series tractors pack serious horsepower for demanding jobs. Whether you’re pulling a 12-bottom plow with your 7810, running a large square baler, or powering through heavy tillage, every horse counts. The viscous clutch gives you back that wasted power when the fan doesn’t need to run full speed, plus you’ll appreciate the quieter cab during those long road trips between fields.

Made to Last

This clutch uses special silicone fluid that responds to actual radiator temperature, not just ambient air. The bi-metallic sensor ensures smooth, progressive engagement that’s easier on your belts and fan blades than cheaper units that engage with a jolt. The heavy-duty bearing assembly handles the side loads from large cooling fans, and the aluminum housing dissipates heat effectively.

Installation Notes

Let the engine cool completely before starting—that housing gets hot. Mark your fan blade position if you’re reusing it, clean the mounting surface thoroughly, and check for any water pump shaft play while you’re there. Torque the mounting nut to spec—too tight damages the water pump bearing. After installation, the fan should freewheel when cold and engage progressively as temperature rises.
